HSK合金鋼熱縮刀柄-標準型
產品特點
高動平衡性，動平衡等級G2.5@25000rpm或U<1gmm
熱縮刀柄專用合金鋼材質
L<120組合跳動精度≤0.003mm；L=120，組合跳動精度≤0.004mm
產品詳情
·產品規格：
| 型號 | 夾持徑d | D | D1 | L | 最小裝刀深度E | 最大裝刀深度H |
| HSK32E-SHR4-60 | 4 | 15 | 20 | 60 | 15 | 40 |
| HSK32E-SHR6-70 | 6 | 21 | 27 | 70 | 26 | 40 |
| HSK32E-SHR8-70 | 8 | 21 | 27 | 70 | 26 | 50 |
| HSK32E-SHR10-70 | 10 | 24 | 32 | 70 | 37 | 50 |
| HSK32E-SHR12-70 | 12 | 24 | 32 | 70 | 37 | 50 |
| HSK40E-SHR4-60 | 4 | 15 | 20 | 60 | 15 | 40 |
| HSK40E-SHR6-80 | 6 | 21 | 27 | 80 | 26 | 40 |
| HSK40E-SHR8-80 | 8 | 21 | 27 | 80 | 26 | 50 |
| HSK40E-SHR10-80 | 10 | 24 | 32 | 80 | 32 | 60 |
| HSK40E-SHR12-80 | 12 | 24 | 32 | 80 | 37 | 60 |
| HSK40E-SHR16-90 | 16 | 27 | 34 | 90 | 40 | 70 |
| HSK50A-SHR4-80 | 4 | 15 | 20 | 80 | 15 | 55 |
| HSK50A-SHR6-80 | 6 | 21 | 27 | 80 | 26 | 40 |
| HSK50A-SHR8-80 | 8 | 21 | 27 | 80 | 26 | 50 |
| HSK50A-SHR10-85 | 10 | 24 | 32 | 85 | 32 | 60 |
| HSK50A-SHR12-90 | 12 | 24 | 32 | 90 | 37 | 65 |
| HSK50A-SHR16-95 | 16 | 27 | 34 | 95 | 40 | 70 |
| HSK63A-SHR4-80 | 4 | 15 | 20 | 80 | 15 | 55 |
| HSK63A-SHR6-80 | 6 | 21 | 27 | 80 | 26 | 55 |
| HSK63A-SHR6-120 | 6 | 21 | 27 | 120 | 26 | 95 |
| HSK63A-SHR8-80 | 8 | 21 | 27 | 80 | 26 | 55 |
| HSK63A-SHR8-120 | 8 | 21 | 27 | 120 | 26 | 95 |
| HSK63A-SHR10-85 | 10 | 24 | 32 | 85 | 32 | 60 |
| HSK63A-SHR10-120 | 10 | 24 | 32 | 120 | 32 | 60 |
| HSK63A-SHR12-90 | 12 | 24 | 32 | 90 | 37 | 65 |
| HSK63A-SHR12-120 | 12 | 24 | 32 | 120 | 37 | 65 |
| HSK63A-SHR16-95 | 16 | 27 | 34 | 95 | 40 | 70 |
| HSK63A-SHR16-120 | 16 | 27 | 34 | 120 | 40 | 70 |
| HSK63A-SHR20-100 | 20 | 33 | 42 | 100 | 42 | 80 |
| HSK63A-SHR20-120 | 20 | 33 | 42 | 120 | 42 | 80 |
| HSK100A-SHR12-120 | 12 | 24 | 32 | 120 | 37 | 65 |
| HSK100A-SHR16-120 | 16 | 27 | 34 | 120 | 40 | 70 |
| HSK100A-SHR20-120 | 20 | 33 | 42 | 120 | 42 | 80 |
| HSK100A-SHR25-120 | 25 | 44 | 53 | 120 | 48 | 90 |

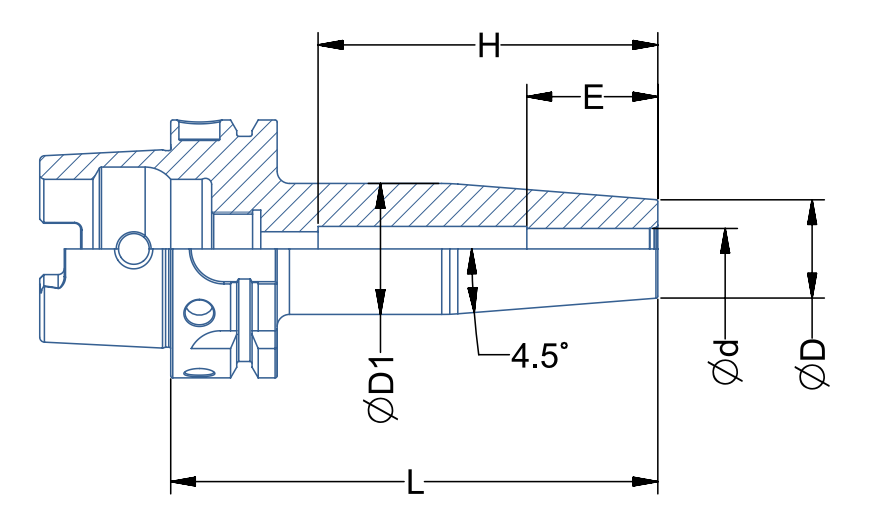

· 產品尺寸圖（單位mm）：
