HSK不銹鋼熱縮刀柄-曲面標準型
產品特點
高動平衡性，動平衡等級G2.5@25000rpm或U<1gmm
特殊不銹鋼材質，裝刀5000次精度不丟失
L<120組合跳動精度≤0.003mm；L=120,組合跳動精度≤0.004mm
產品詳情
·產品規格：
| 型號 | 夾持徑d | D | D1 | L | 最小裝刀深度E | t |
| HSK63A-SHR4-120C | 4 | 10 | 53 | 120 | 12 | 3 |
| HSK63A-SHR4-150C | 4 | 10 | 53 | 150 | 12 | 3 |
| HSK63A-SHR4-180C | 4 | 10 | 53 | 180 | 12 | 3 |
| HSK63A-SHR6-120C | 6 | 13 | 53 | 120 | 18 | 3.5 |
| HSK63A-SHR6-150C | 6 | 13 | 53 | 150 | 18 | 3.5 |
| HSK63A-SHR6-180C | 6 | 13 | 53 | 180 | 18 | 3.5 |
| HSK63A-SHR8-120C | 8 | 16 | 53 | 120 | 24 | 4 |
| HSK63A-SHR8-150C | 8 | 16 | 53 | 150 | 24 | 4 |
| HSK63A-SHR8-180C | 8 | 16 | 53 | 180 | 24 | 4 |
| HSK63A-SHR10-120C | 10 | 19 | 53 | 120 | 30 | 4.5 |
| HSK63A-SHR10-150C | 10 | 19 | 53 | 150 | 30 | 4.5 |
| HSK63A-SHR10-180C | 10 | 19 | 53 | 180 | 30 | 4.5 |

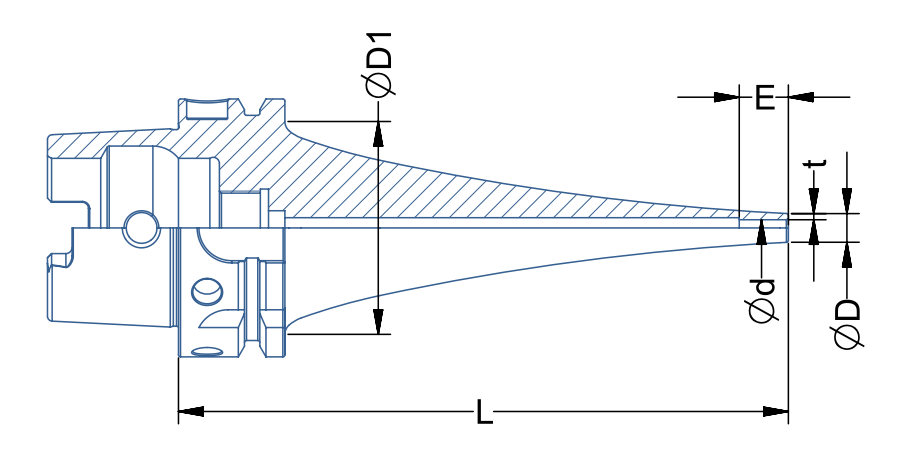

· 產品尺寸圖（單位mm）:
