HSK冷壓刀柄
產品特點
超高夾持力，夾持力超過熱縮刀柄
組合跳動精度≤0.003mm
專用裝刀設備，一鍵裝刀
產品詳情
·產品規格：
| 型號 | 夾持徑d | D | L | 適配筒夾 |
| HSK25E-PC6-45 | 4 | 10 | 45 | PC6-[ ] |
| HSK25E-PC10-55 | 6 | 16 | 55 | PC10-[ ] |
| HSK32E-PC6-50 | 4 | 10 | 50 | PC6-[ ] |
| HSK32E-PC10-60 | 6 | 16 | 60 | PC10-[ ] |
| HSK32E-PC15-75 | 10 | 24 | 75 | PC15-[ ] |
| HSK40E-PC10-65 | 6 | 16 | 65 | PC10-[ ] |
| HSK40E-PC15-75 | 10 | 24 | 75 | PC15-[ ] |
| HSK50A-PC10-80 | 6 | 16 | 80 | PC10-[ ] |
| HSK50A-PC15-80 | 10 | 24 | 80 | PC15-[ ] |
| HSK50A-PC25-100 | 20 | 40 | 100 | PC25-[ ] |
| HSK63A-PC10-80 | 6 | 16 | 80 | PC10-[ ] |
| HSK63A-PC15-80 | 10 | 24 | 80 | PC15-[ ] |
| HSK63A-PC25-100 | 20 | 40 | 100 | PC25-[ ] |
| HSK63A-PC25-150 | 20 | 40 | 150 | PC25-[ ] |
| HSK63A-PC32-100 | 25 | 50 | 100 | PC32-[ ] |
| HSK63A-PC32-150 | 25 | 50 | 150 | PC32-[ ] |
| HSK100A-PC10-90 | 6 | 16 | 90 | PC10-[ ] |
| HSK100A-PC15-90 | 10 | 24 | 90 | PC15-[ ] |
| HSK100A-PC25-100 | 20 | 40 | 100 | PC25-[ ] |
| HSK100A-PC32-110 | 25 | 50 | 110 | PC32-[ ] |

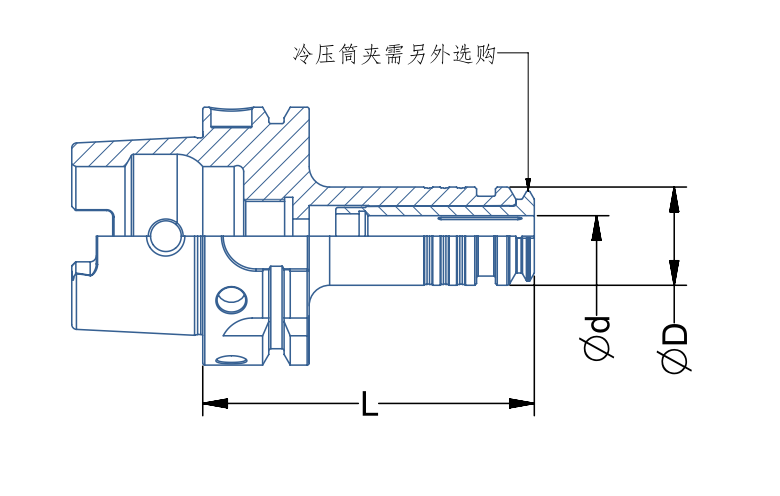

· 產品尺寸圖（單位mm）:
